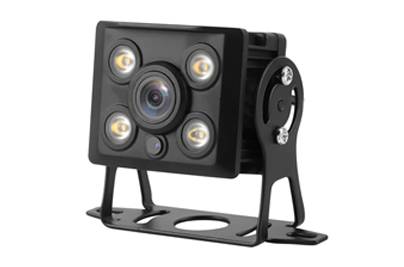

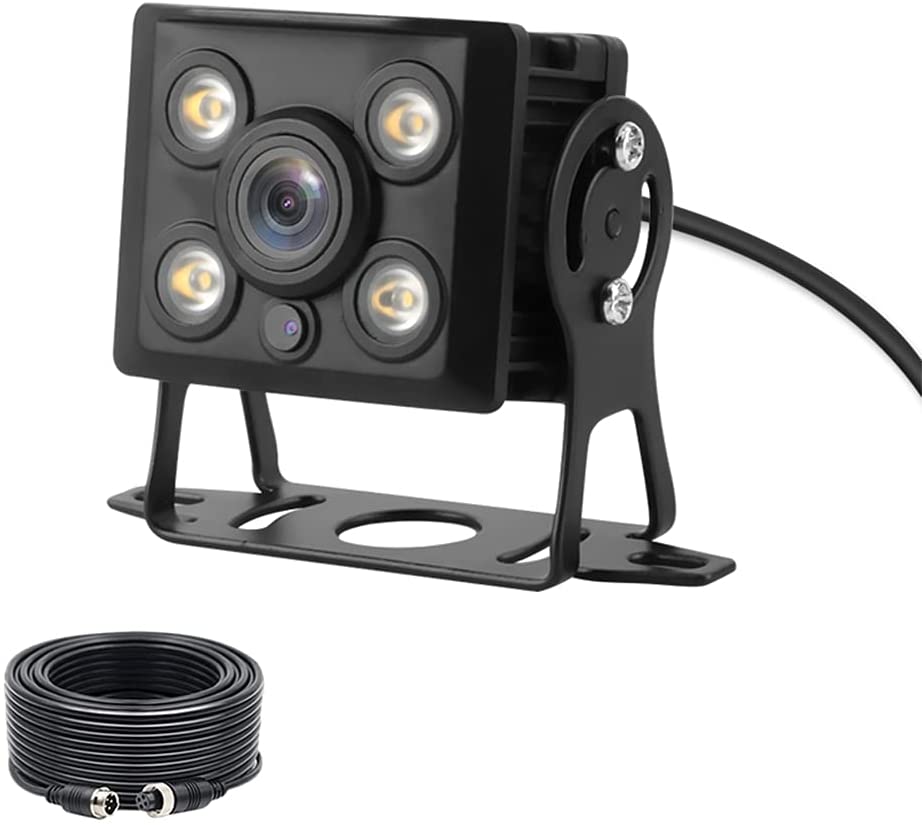

AHD Camera
1. Specialized structure for vehicle:
easy assembly and dis-assembly; lockable angle and anti-vibration，adapt to volatile environments.
2. Anti-jamming & low power design:
avoid vehicle circuit interface; support high temperature on vehicle roof.
3. High definition video streaming with smart and compact design.
Features
- Metal-cased mobile box with fixed lens;
- Available in black finish;
- Low power consumption;
- Easy installation on ceiling or wall, surface or flush mount;
- IP68 waterproof;
Technical Parameters
Image Device | 1/2.9” CMOS |
Frame Rate | 25 fps / 30 fps |
Effective Pixels | 1920(H) x 1080(V) |
Pixel Size | 2.8μm × 2.8μm |
Scanning System | Progressive Scanning |
Sync. System | Internal |
Resolution | 1080P |
Video Output | 1.0Vp-p, 75Ohm |
Gamma Consumption | 0.45 |
AGC | Auto |
S/N Ratio | Better than 52dB |
White Balance | Auto |
Electronic Shutter | 1/25 (1/30)~1/50,000 Seconds |
BLC | Auto |
Operating Temperature | -20°C~75°C, RH 95% MAX. |
Storage Temperature | -30°C~80°C, RH 95% MAX. |
